Bay Marine- Waukegan, IL
3 E Madison St
Waukegan, Illinois, US, 60085
American Tug 34 - main image

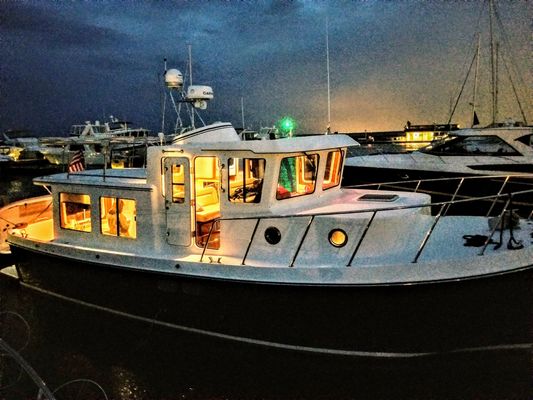

2006 American Tug 34

location icon Chicago, Illinois
Year 2006
Length 34'4 ft

A couple’s boat with lots of character, the American Tug 34 is designed for the Great Loop, the Inside Passage or a summer excursion to the rocky shores and hidden coves of Down East Maine. A semi-displacement trawler, the American Tug 34 is a salty, comfortable, single-diesel cruiser that’s easy to manage and maintain, while retaining the company’s iconic tugboat lines, including the faux smokestack.

The pilothouse has sliding doors on either side, giving access to both side decks. It also has 360-degree views, with large front windows, side windows and glass in the doors, plus small windows looking aft. A raised seat for two, with footrest, is on the port side, opposite the helm station, which has its own seat for two, so everyone can enjoy the view underway.

The salon is straightforward, with large square side windows letting in a lot of light, plus more windows aft. The L-shaped galley is along the port side and is equipped for cruising. A watertight door leads to the cockpit. The swim platform is integral to the hull.

American Tugs are made in Washington, and they’re all based on designs by the late Seattle naval architect Lynn Senour. The 34 has a full keel; a heavy-duty stainless-steel shoe protects the running gear. Powered by a single Cummins 380 HP diesel that moves the boat effortlessly into the teens although it reaches maximum fuel efficiency in the 8-knot range. Bow and Stern thrusters make maneuvering around the docks a breeze.

A full suite of new Garmin electronics were added in 2018 including Garmin 7612 Chart and a remote Garmin chart in forward berth, Garmin Autopilot, Garmin Fantom Radar, AIS, Sirius Weather, Garmin Weather station, KVH antenna and an ICOM VHF.  A newly installed Webasto 5500 diesel heater will keep you warm on the coldest of nights.

Included in the sale is a 2011 Livingston 9 foot fiberglass catamaran dinghy.

With only 737 primarily freshwater hours this 34 is truly turn key and comes with everything you need to shove off the dock and set off on adventure.. New zincs, fresh oil change on generator and engine, coolant flush, new impeller completed at the end of 2018 by Cummins of Dearborn Michigan.


Please Contact Ron Durchin at 8479804975 with any questions about this stunning American Tug 34.


Year Built 2006
Category Power
Length Overall 38'5 ft
Beam 13'3 ft
Max Draft 3'5 ft
Double Berths 1
Construction Fiberglass
Hull ID TQG34099E606
Drive Type Direct
Engines 1
Total Engine Power 380 hp
Maximum Speed 2,650.38 kn
Fuel Tanks 1
Fuel Tank Cap. 400 gal
Water Tanks 1
Water Tank Cap. 150 gal
Holding Tanks 1
Holding Tank Cap. 45 gal
Dry Weight 20,000 lb
Windlass Electric

Engine 1 Specifications

Make: Cummins
Model: QSB 380 5.9
Drive Type: Direct
Fuel: Diesel
Engine Power: 380hp
Type: Inboard
Propeller Type: 4 Blade, Bronze
Year: 2006
Engine Hours: 600
Engine Location: Center
Manufacturer Provided Description
No description

The centerline queen berth offers a  high quality mattress. There are four large drawers under the berth. His & Hers storage compartments line the port & starboard hull sides. There is a very large cedar lined hanging locker on starboard and an additional set of shelves on port. Reading lights with are on both sides of the berth. Private access is provided to the head, which also has a second door for quick access to the pilothouse.

  • Centerline Island master berth
  • Four large capacity drawers underneath
  • Large hanging locker - lined in aromatic cedar
  • Overhead ventilation hatch
  • Stainless portlights with screens
  • Abundant storage
  • Speakers with fader knob
  • Indirect lighting
  • LED overhead lighting

Beautiful galley that feature a full-height Granicoat countertop that has a formed backsplash and nice detailing. There are two large deep sinks with pressure hot & cold water.

  • Electric three burner range and oven
  • Cutting board custom fit to sink
  • Extra cabinet to starboard of refer
  • Sharp Carousel microwave oven
  • Molded Granicoat countertop with double sink
  • Upright 12v/120v Novakool Freezer/refrigerator - Large
  • 150 Gallon water tank
  • 6g Water heater
  • Massive amount of galley storage




Full size head & shower, the best in class.  The head has a Vacu-Flush system, a large shower (36" square) with glass door and Granicoat counter.

  • SeaLand Vacu-Flush system
  • Fresh water flushing for odor free operation
  • Macerator pump
  • Shower stall 3’ X 3’ w/glass door
  • Granicoat counters
  • Ventilation stainless porthole in shower
  • Teak & Holly floor in head
  • Private access from stateroom or companionway


Electrical System

All American Tugs have a robust DC electrical system. There is a 600 AH house bank of AGM batteries and additional AGM batteries for engine and genset. The circuit breakers are all by made by Blue Seas.

The AC system is also set up properly with a Northern Lights 6kw diesel genset, Factory option Magnum Energy 2700-watt power inverter & integrated 40-amp multi-step battery charger is connected to the batteries using a Blue Seas ACR combiner. Shore power is controlled by a Blue Seas breaker panel.

12 Volt DC Electrical
  • Xantrex battery monitor
  • Blue Seas Digital 2 bank Voltmeter for voltage at a glance
  • Blue Seas breaker panel w/ meters
  •  - Digital multi-meters included in panel - factory option
  • 600AH house battery bank - 3ea 4-D AGM Batteries
  • 200AH engine start battery - 1ea 4-D AGM Battery
  • Blue Seas ACR battery combiner
  • Additional 3ea 12-volt breakers at panel - factory option
  • Air Compressor for Dual air horns
  • 12V Pressure water system
  • ACR Spotlight
  • 12V windshield wipers
  • Profile tank monitor
  • Almost all lighting converted to LED
120 Volt AC Electrical
  • 12,000 BTU and 16,000 BTU air conditioning units
  • Blue Seas breaker panel w/ source switching
  • 120-volt electrical outlets throughout boat
  • 4ea additional electrical outlets
  • Magnum Energy 2700-watt inverter
  • - multi-step battery charger
  • - Remote panel in pilothouse
  • Xantrex TrueCharge 40 Charger
  • Northern Lights 6Kw genset (452 hours)
  • - Enclosed in a sound shield
  • - Separate AGM Group 24 start battery
  • - Genset battery parallel switch
  • - Racor fuel filter
  • - Groco water strainer & Forespar Marelon thru hull
  • Shore power cord
  • 120v central cabin heating system


  • Cummins QSB 5.9, 380 hp electronic common rail engine
  • Electronic Engine Control
  • Cummins Smartcraft Display- shows fuel economy
  • Walker Airsep
  • Large capacity Groco water strainer
  • Fuel Purifier
  • Racor 900-series dual filtration with water separator
  • Two engine room ladder - Stainless
  • Bronze 4-blade propeller
  • Dripless shaft seal
  • Razor shaft line cutter
  • Composite rudder & skeg
  • Fresh oil change, coolant change and impeller December 2018 by Cummins
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
